Model number： YJ-862

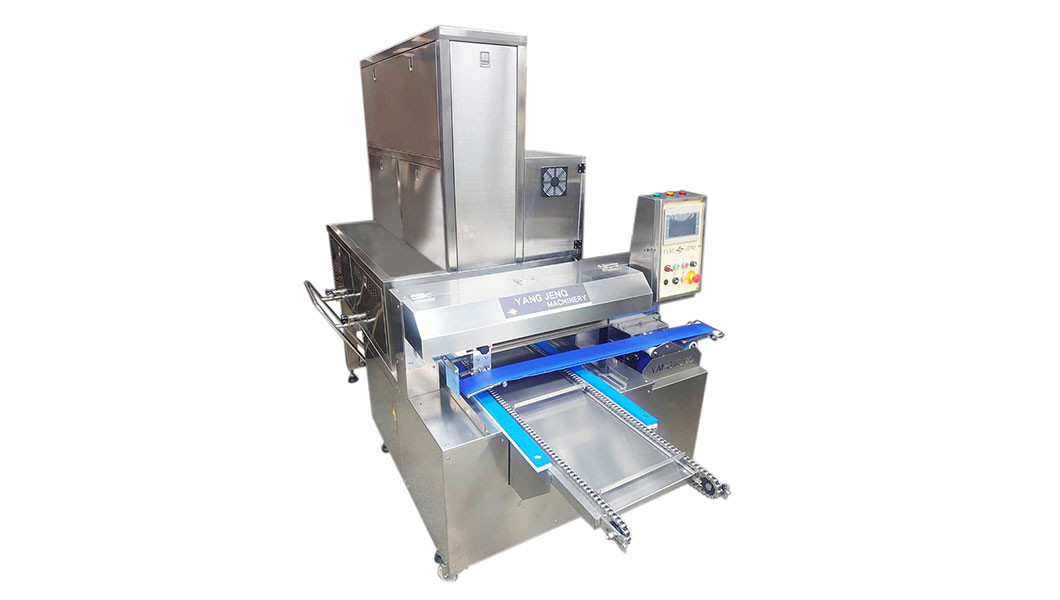

YJ-862 Auto Arrangement Machine
Yangjenq Auto Automatic Tray Arrangement Machine is equipped with an advanced PLC intelligent control system and built-in 15 memory settings, allowing users to freely configure parallel or staggered arrangement patterns according to production requirements. The machine can accommodate up to 100 trays at a time, effectively reducing manual tray replacement frequency and improving overall production efficiency.The equipment features an integrated computer control panel capable of automatically calculating the optimal arrangement pattern and quantity. Combined with a high-precision servo motor positioning system, products can be accurately and automatically placed onto baking trays or steaming trays, greatly enhancing placement stability and consistency.
In addition, the tray arranging machine is equipped with a built-in alarm buzzer system that instantly reports abnormal conditions. Operators can quickly identify the cause of faults through the control panel, reducing maintenance time and minimizing production downtime.
Automatic Tray Arrangement Capacity: 1,000 ~ 7,000 pcs/hour
Quantity
PLC System
Our PLC system has a built in memory and can store up to 99 panning patterns. Operation is very simple with a color touch screen and basic settings such as conveyor speeds, indexing speeds can be controlled from the sturdy looking control box.
Delicate Arranging
All pick up has been automated, so product shape remains intact and production is very sanitary.
Human–machine Interaction
7-inch touch screen, easy to operate interface program, and display capacity and alarm design, the operator can directly understand the production status and the built-in Chinese and English versions can be freely selected.
I/O list
Quick and clear to query of line fault causes and shorten inspection time.
Alert description
Users can clearly understand the cause of the fault directly at the interface and immediately eliminate the problem.
Servo
Complete with a sensor alarm the servo arm is very fast and can detect the exact position of each product making incremental changes to the panning speed to compensate for varying conveyor speeds.
Controlled by server motor system; the placement of the products is accurate.
Castor & Leveling Mounts
Castors allow easy positioning of equipment in your workshop. Heavy duty leveling mount ensures proper machine level after installation.
Tray Pattern
The computer can judge and calculate the arranging pattern and number of products on each row, giving you greater flexibility over your production. Tray sizes can be customized to fit your specific requirements. Standard amount of indexed trays: 10
Equipped with a movable tray storage trolley that can accommodate up to 100 trays.
