Model number: YJ-860

YJ-860 Auto Arrangement Machine

Our PLC system has a built in memory and can store up to 15 panning patterns as well as set the arrangement (parallel or cross), reducing manual labor and increasing productivity. The computer can judge and calculate the arranging pattern and number of products on each row, and the servo motor system ensures the placement of the products is accurate. Equipped with a sensor alarm and user-friendly control panel, this machine is both economical and affordable.

Quantity
YJ-860 Auto Arrangement Machine

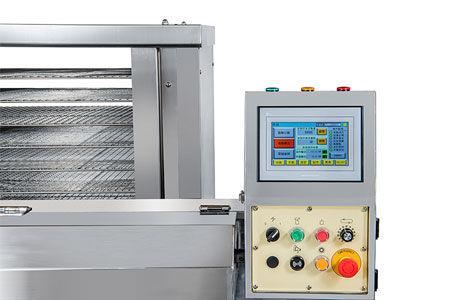

PLC System

Our PLC system has a built in memory and can store up to 99 panning patterns. Operation is very simple with a color touch screen and basic settings such as conveyor speeds, indexing speeds can be controlled from the sturdy looking control box.

YJ-860 Auto Arrangement Machine

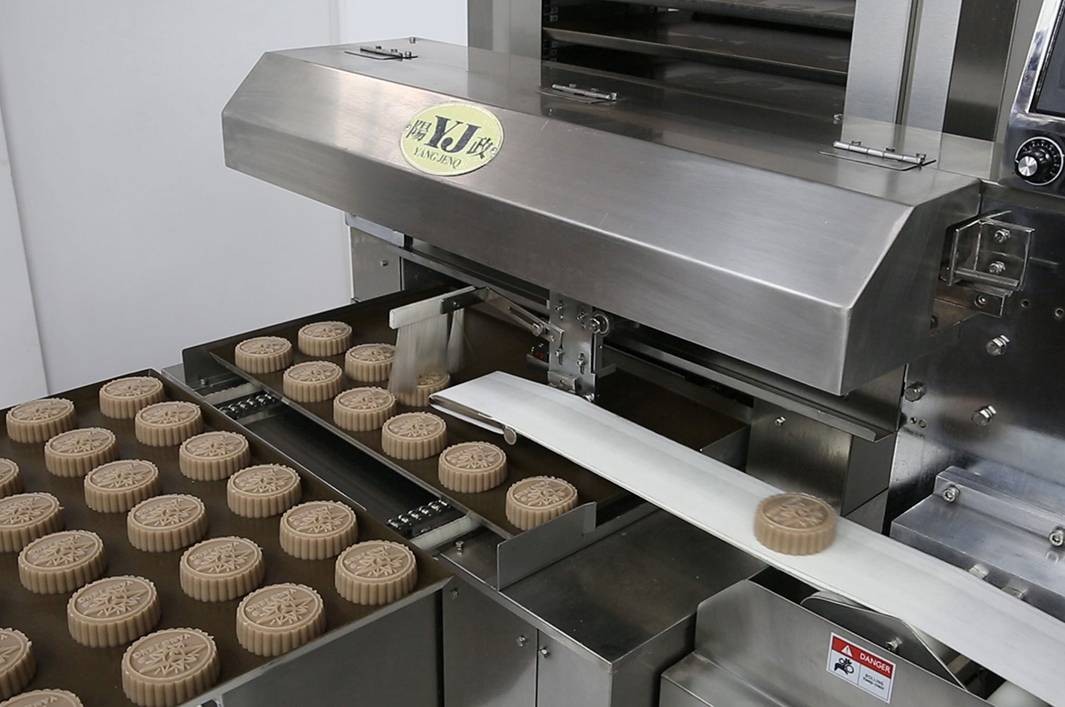

Delicate Arranging

All pick up has been automated, so product shape remains intact and production is very sanitary.

YJ-860 Auto Arrangement Machine

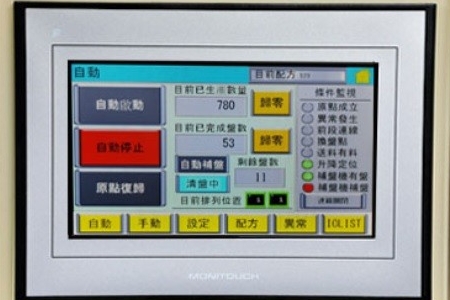

Human–machine Interaction

7-inch touch screen, easy to operate interface program, and display capacity and alarm design, the operator can directly understand the production status and the built-in Chinese and English versions can be freely selected.

YJ-860 Auto Arrangement Machine

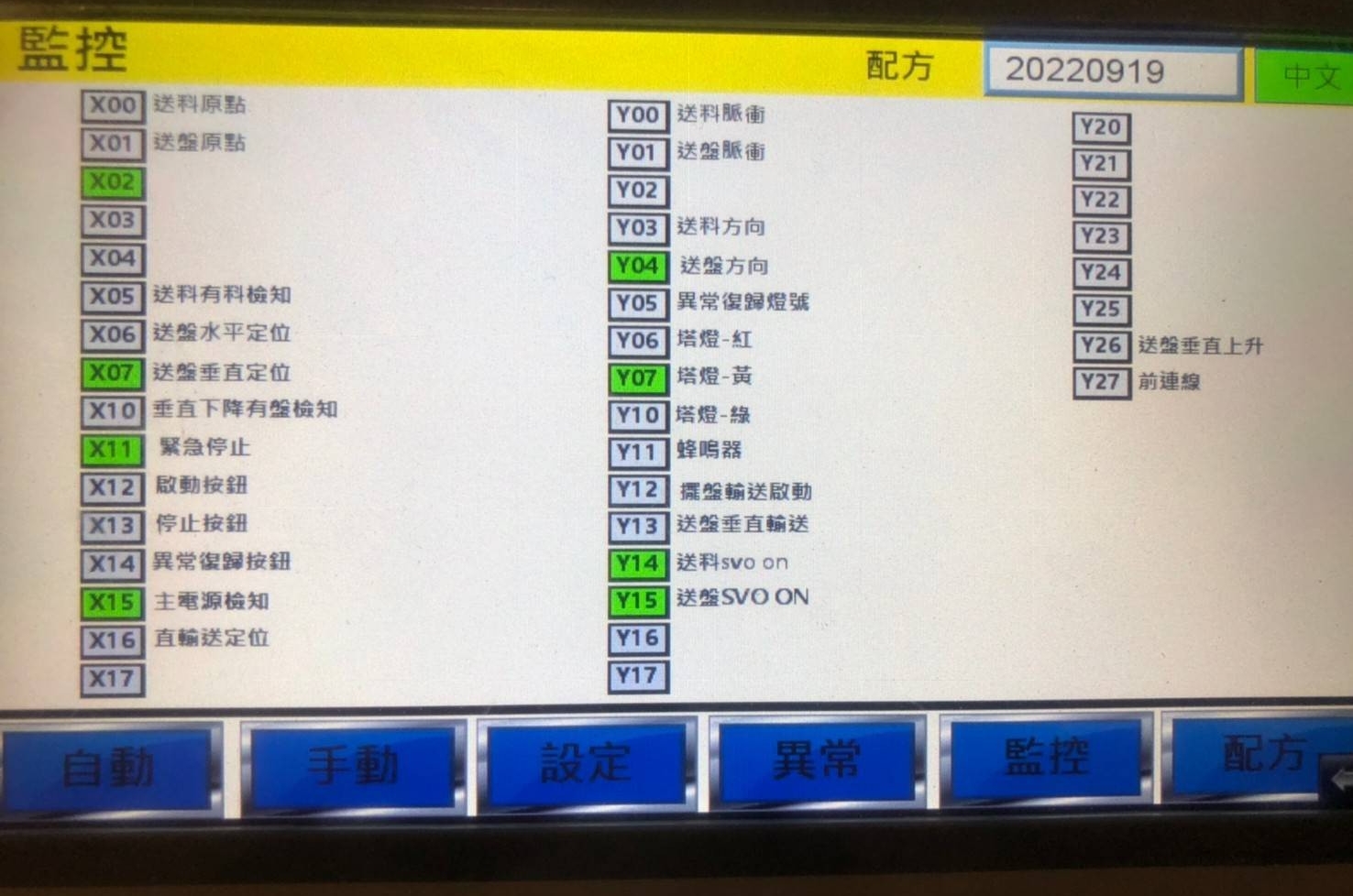

I/O list

Quick and clear to query of line fault causes and shorten inspection time.

YJ-860 Auto Arrangement Machine

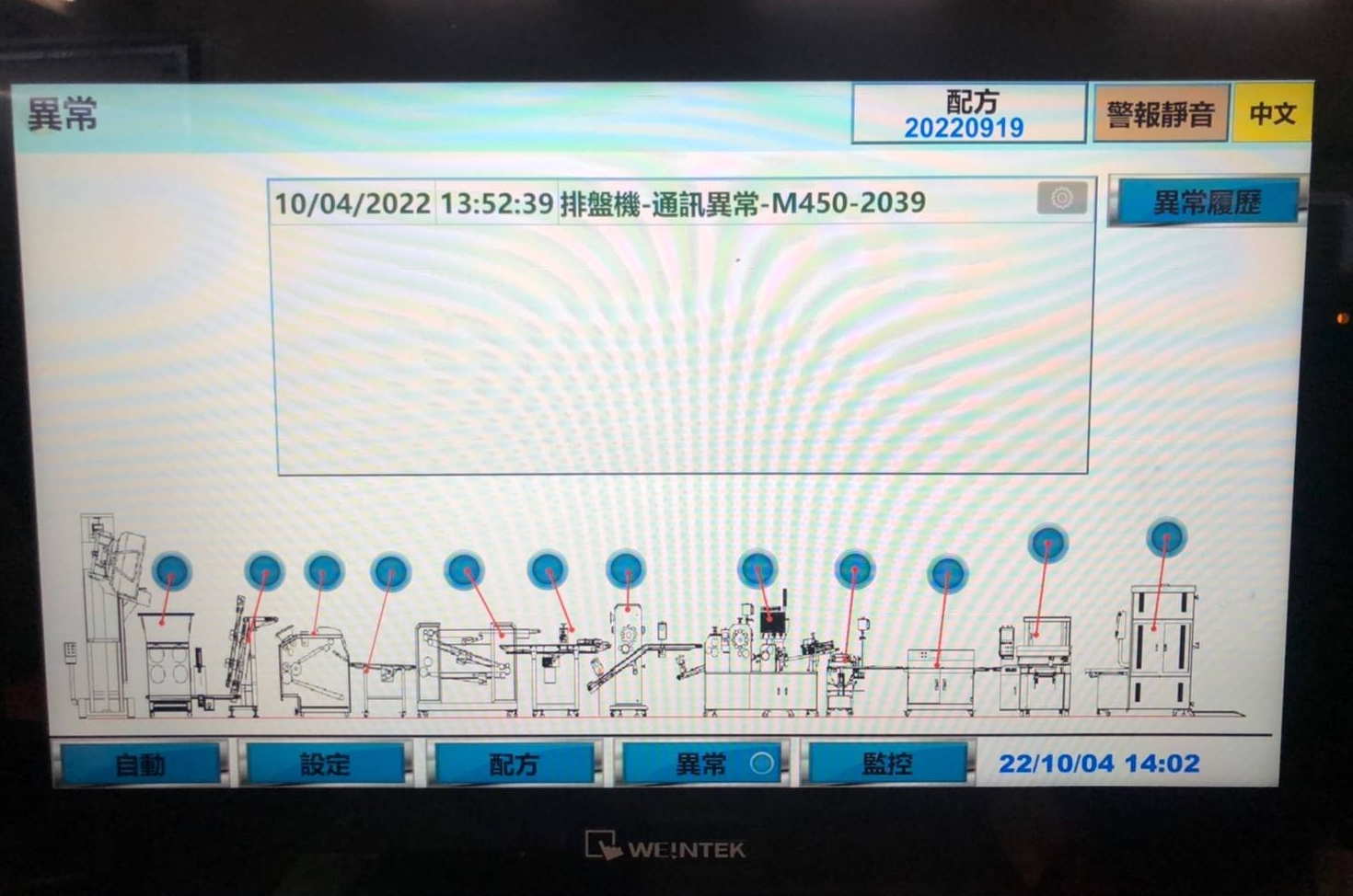

Alert description

Users can clearly understand the cause of the fault directly at the interface and immediately eliminate the problem.

YJ-860 Auto Arrangement Machine

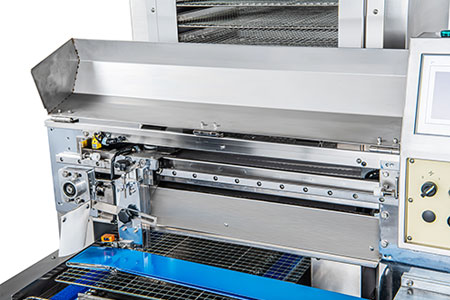

Servo

Complete with a sensor alarm the servo arm is very fast and can detect the exact position of each product making incremental changes to the panning speed to compensate for varying conveyor speeds.
Controlled by server motor system; the placement of the products is accurate.

YJ-860 Auto Arrangement Machine
Tray Pattern

The computer can judge and calculate the arranging pattern and number of products on each row, giving you greater flexibility over your production. Tray sizes can be customized to fit your specific requirements. Standard amount of indexed trays: 10

YJ-860 Auto Arrangement Machine

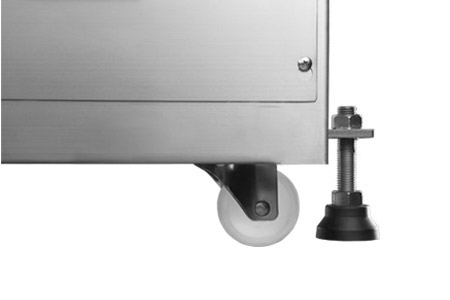

Castor & Leveling Mounts

Castors allow easy positioning of equipment in your workshop. Heavy duty leveling mount ensures proper machine level after installation.



Specification

ItemOven DimensionSteamer DimensionUnit
Length15201520mm
Width14382200mm
Height14801480mm
Power1.51.5kw
Weight465465kg
Tray Size600*400*20605*605*10mm
